Clutch

A clutch is a machine member used to connect a driving shaft to a driven shaft so that the driven shaft may be started or stopped at will, without stopping the driving shaft. The use of a clutch is mostly found in automobiles. A little consideration will show that in order to change gear or to stop the vehicle, it is required that the driven shaft should stop, but the engine should continue to run. It is, therefore, necessary that the driven shaft should be disengaged from the driving shaft. The engagement and disengagement of the shafts is obtained by means of a clutch which is operated by a lever.

Types of Clutches

Following are the two main types of clutches commonly used in engineering practice:

1.      Positive clutches

2.      Friction clutches.

Positive Clutches:

The positive clutches are used when a positive drive is required. The simplest type of a positive clutch is a jaw or claw clutch. The jaw clutch permits one shaft to drive another through a direct contact of interlocking jaws. It consists of two halves, one of which is permanently fastened to the driving shaft by a sunk key. The other half of the clutch is

movable and it is free to slide axially on the driven shaft, but it is prevented from turning relatively to its shaft by means of feather key. The jaws of the clutch may be of square type or of spiral type. A square jaw type is used where engagement and disengagement in motion and under load is not necessary. This type of clutch will transmit power in either direction of rotation. The spiral jaws may be left-hand or right-hand, because power transmitted by them is in one direction only. This type of clutch is occasionally used where the clutch must be engaged and disengaged while in motion. The use of jaw clutches are frequently applied to sprocket wheels, gears and pulleys. In such a case, the non-sliding part is made integral with the hub.

Friction Clutches:

A friction clutch has its principal application in the transmission of power of shafts and machines which must be started and stopped frequently. Its application is also found in cases in which power is to be delivered to machines partially or fully loaded. The force of friction is

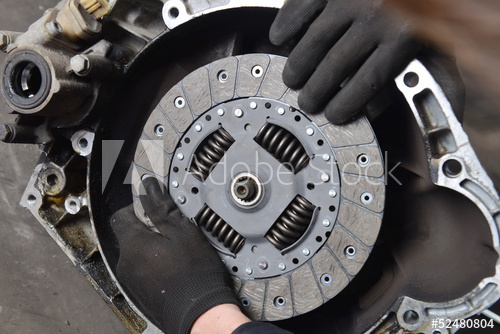

used to start the driven shaft from rest and gradually brings it up to the proper speed without excessive slipping of the friction surfaces. In automobiles, friction clutch is used to connect the engine to the drive shaft. In operating such a clutch, care should be taken so that the friction surfaces engage easily and gradually bring the driven shaft up to proper speed. The proper alignment of the bearing must be maintained and it should be located as close to the clutch as possible. It may be noted that :

1. The contact surfaces should develop a frictional force that may pick up and hold the load with reasonably low pressure between the contact surfaces.

2. The heat of friction should be rapidly dissipated and tendency to grab should be at a minimum.

3. The surfaces should be backed by a material stiff enough to ensure a reasonably uniform distribution of pressure.

Types of Friction Clutches

Though there are many types of friction clutches, yet the following are important from the subject point of view:

1. Disc or plate clutches (single disc or multiple disc clutch),

2. Cone clutches, and

3. Centrifugal clutches.

Material for Friction Surfaces

The material used for lining of friction surfaces of a clutch should have the following characteristics:

1. It should have a high and uniform coefficient of friction.

2. It should not be affected by moisture and oil.

3. It should have the ability to withstand high temperatures caused by slippage.

4. It should have high heat conductivity.

5. It should have high resistance to wear and scoring.

Considerations in Designing a Friction Clutch

The following considerations must be kept in mind while designing a friction clutch.

1. The suitable material forming the contact surfaces should be selected.

2. The moving parts of the clutch should have low weight in order to minimize the inertia load, especially in high speed service.

3. The clutch should not require any external force to maintain contact of the friction surfaces.

4. The provision for taking up wear of the contact surfaces must be provided.

5. The clutch should have provision for facilitating repairs.

6. The clutch should have provision for carrying away the heat generated at the contact surfaces.

7. The projecting parts of the clutch should be covered by guard.
